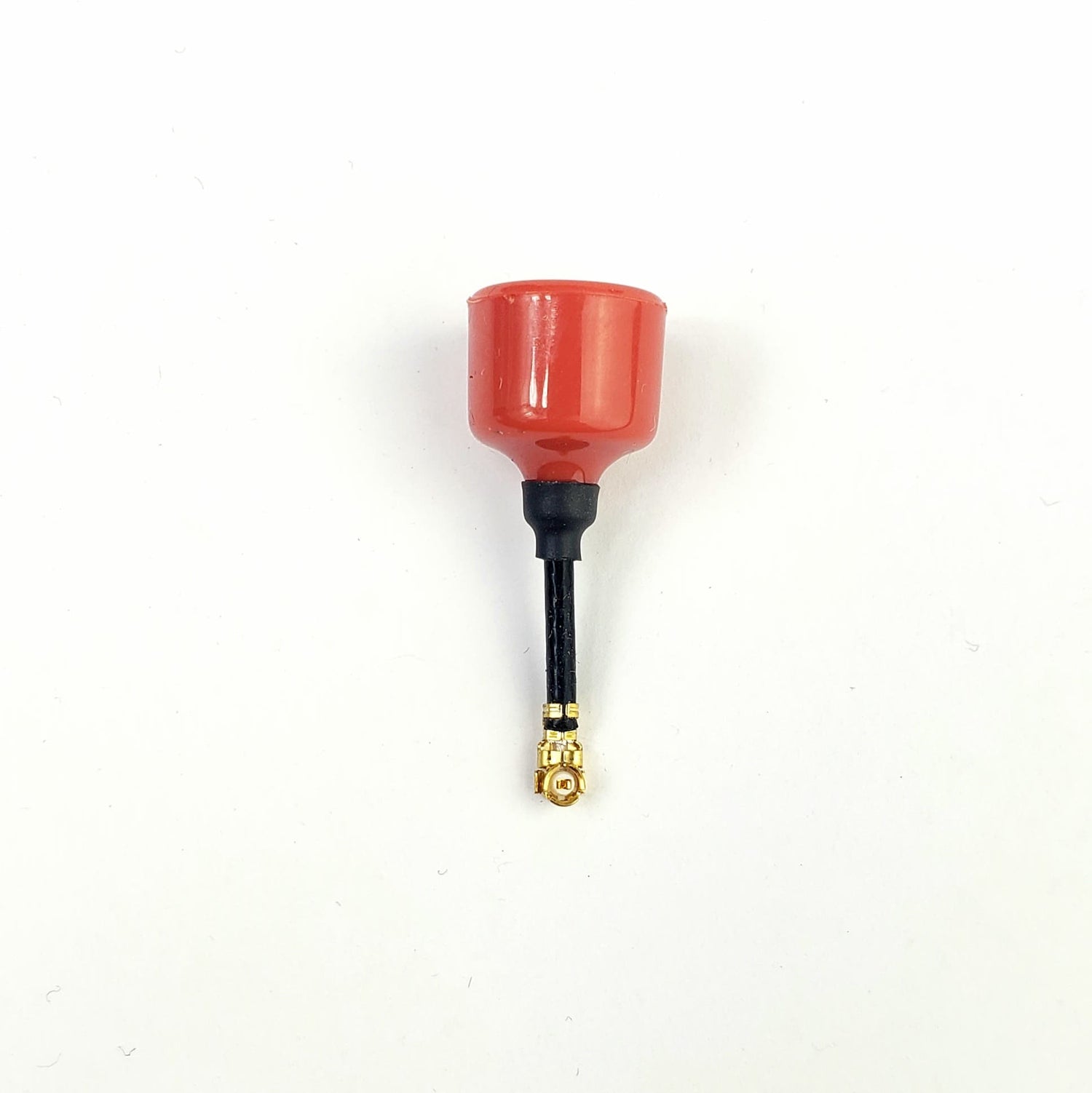

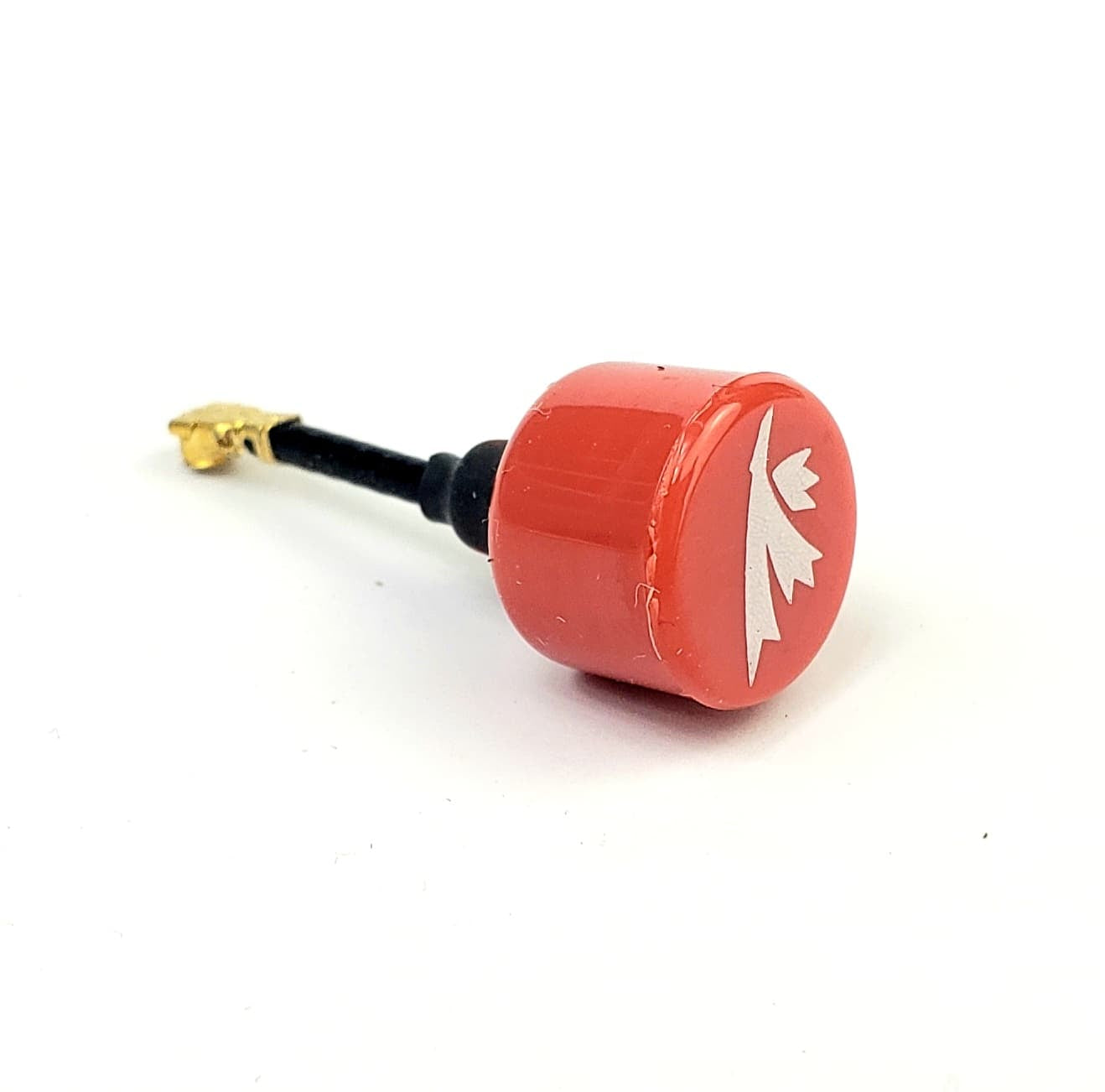

The Singularity has become a standard RHCP antenna in the Tiny Whoop Community. Every major event I have visited for years I have seen at least one of these iconic antennas. They have a very small form-factor for RHCP, and are very durable.

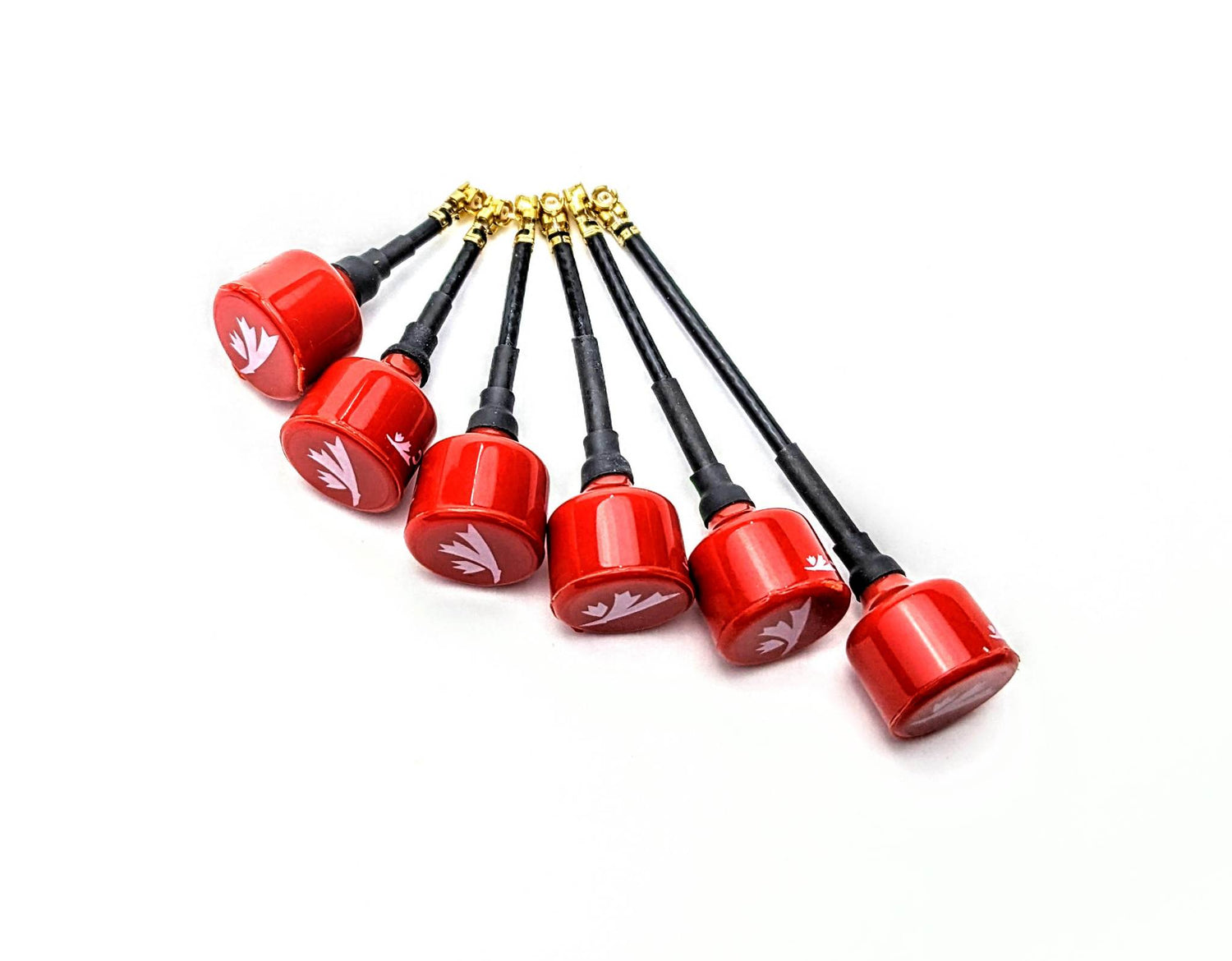

TinyWhoop.com is proud to offer lots of custom lengths to fit your custom build! You're welcome!

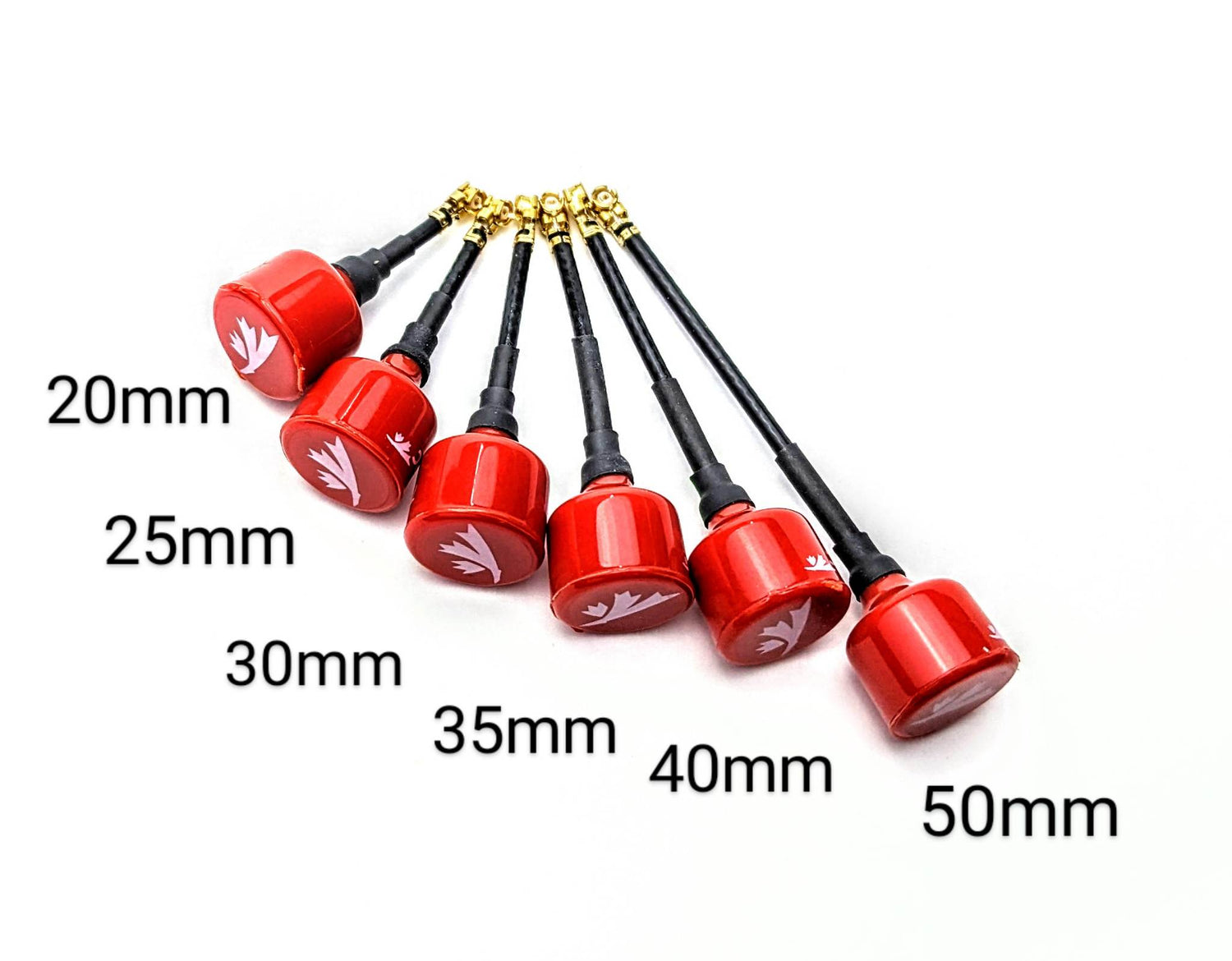

- Weight:
- 20mm: 1.0589
- 25mm: 1.1063
- 30mm: 1.1668
- 35mm: 1.2099
- 40mm: 1.2801
- 50mm: 1.3118

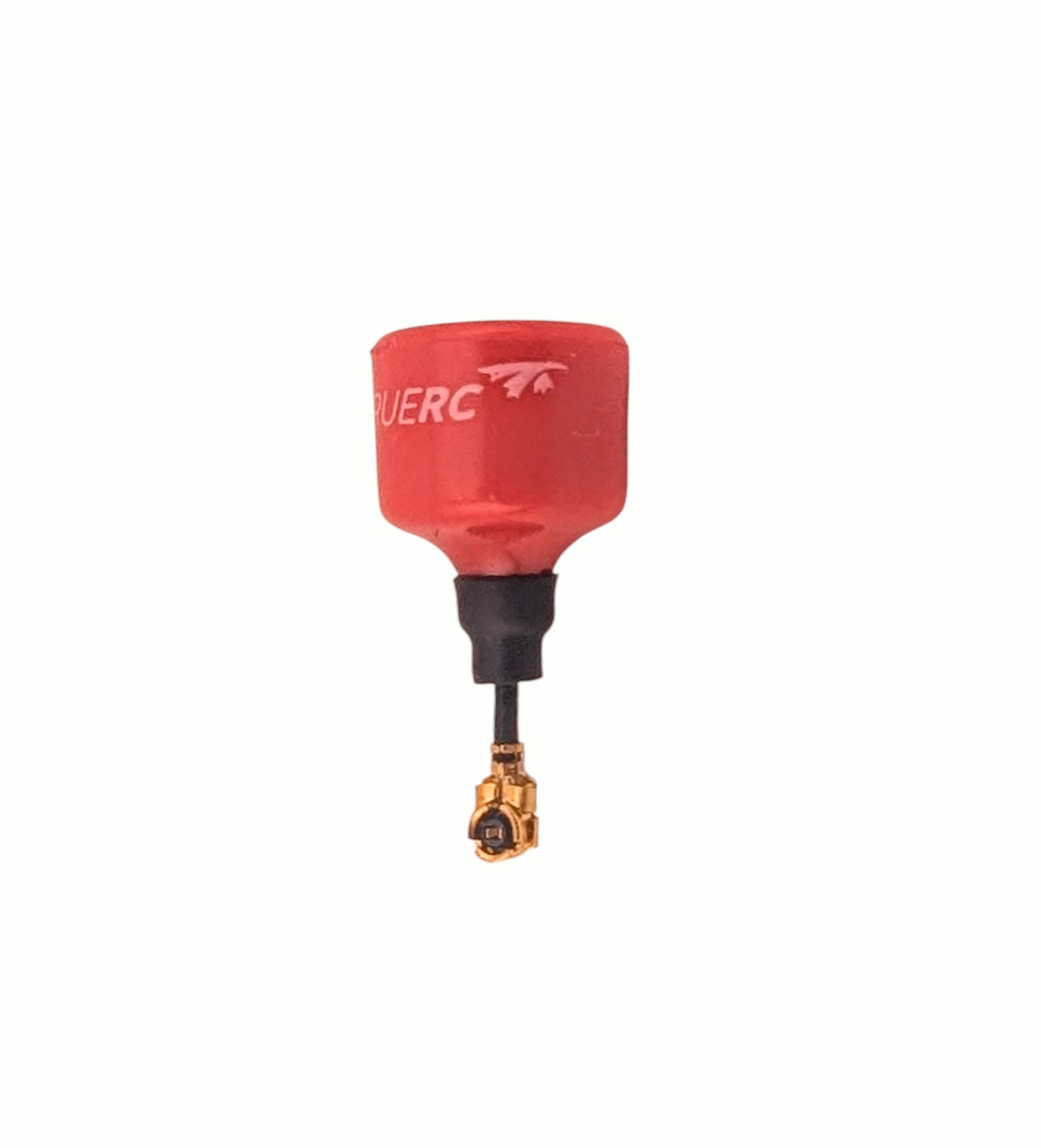

Created by TrueRC, this is their most advanced antenna, pushing miniaturization further than ever before while managing to increase performance over previous models.
Here are the Specs:
- Gain: 1.9dbic
- Polarization: RHCP
- Cross-Polar Rejection: -15 to -30dB (1.9%)/
- Bandwidth: 5.6GHz-6.0GHz
- Radiation Efficiency: 99%
- SWR: <=1.5:1
- Weight: 0.889g
- Dimensions(head): 11.8mm dia. x 8.2mm height (PDF)
- Length: Your choice!
- Cable: RG405, RG178, 1.13mm
- Connector: U.FL
