Moblite7 HDZero 75mm BNF
$229.99
Unit price
/
Unavailable

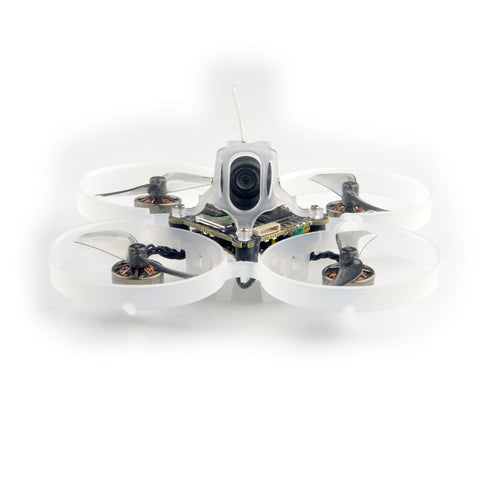

This is one of the first 75mm aircraft equiped with HDZero video transmission. It is now discontinued, but interestingly carries the HDZero Lite camera, which has slightly better picture than the lighter alternatives that were subsequently released.
Specifications:
Brand Name: Happymodel
Model: Moblite7 HDZERO
Frame wheelbase: 75mm
Weight: 29.5 gram without battery
Size: 98mm*98mm*50mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: PH2.0

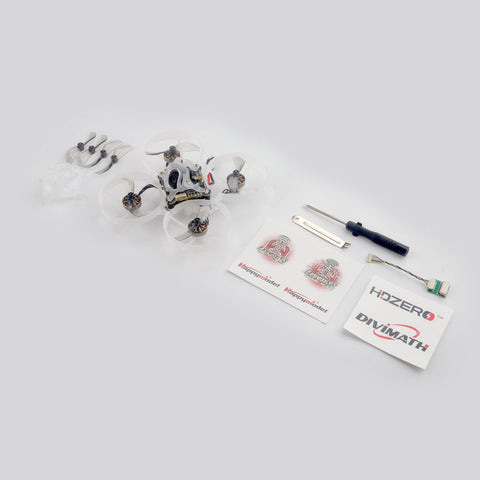

Package includes:
| Item Name | Qty |
| Mobula7 v4 75mm frame +Canopy | 1 |
| SPI Receiver Option1: SuperbeeF4 Lite FC built-in ExpressLRS SPI RX | 1 |
| SPI Receiver Option2: SuperbeeF4 Lite FC built-in Frsky SPI RX | |
| EX1002 KV20000 Unibell brushless motor | 4 |
| Gemfan 1610-2 bi-blades propeller(4cw+4ccw) | 1 |
| HDZero Nano Lite Camera | 1 |
| HDZero Whoop Lite VTX | 1 |
| Spare Canopy | 1 |
| Propeller disassemble tool | 1 |
| Screw driver | 1 |
|
Flight controller SuperbeeF4 Lite ELRS/FRSKY |
SPI ELRS version Firmware target: CrazybeeF4SX1280 SPI FRSKY version Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: ICM20689 or ICM42688P or BMI270(SPI connection) Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/ExpressLRS receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV (2.8v~4.35v) Currents: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT150/DSHOT300/DSHOT600 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Could bind with ELRS V2.0 firmware TX module |
| Onboard Frsky SPI D8 /D16 2.4GHz Receiver | SPI BUS receiver Frsky D8/D16 compatible Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt) Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol |
| Motor | Model: EX1002 20000KV Configu-ration:9N12P Stator Diameter:10mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm Weight(g):2.5g No.of Cells(Lipo):1S only |
| Propeller Gemfan 1610-2 Bi-blades | Weight:0.24g Material: PC Pitch:1 inchProps Dia:40mm Center Hole Dia:1.5mm |
| HDZero Nano Lite Camera | 14x16x11 mm 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65° |
| HDZero Whoop Lite VTX | 1S Input 25mW/200mW RF Output-SmartAudio Support 25.5×25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5×32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding) |
