Walksnail Avatar FPV VRX
$219.00
Unit price
/
Unavailable
Lightweight design, ultra-thin experience

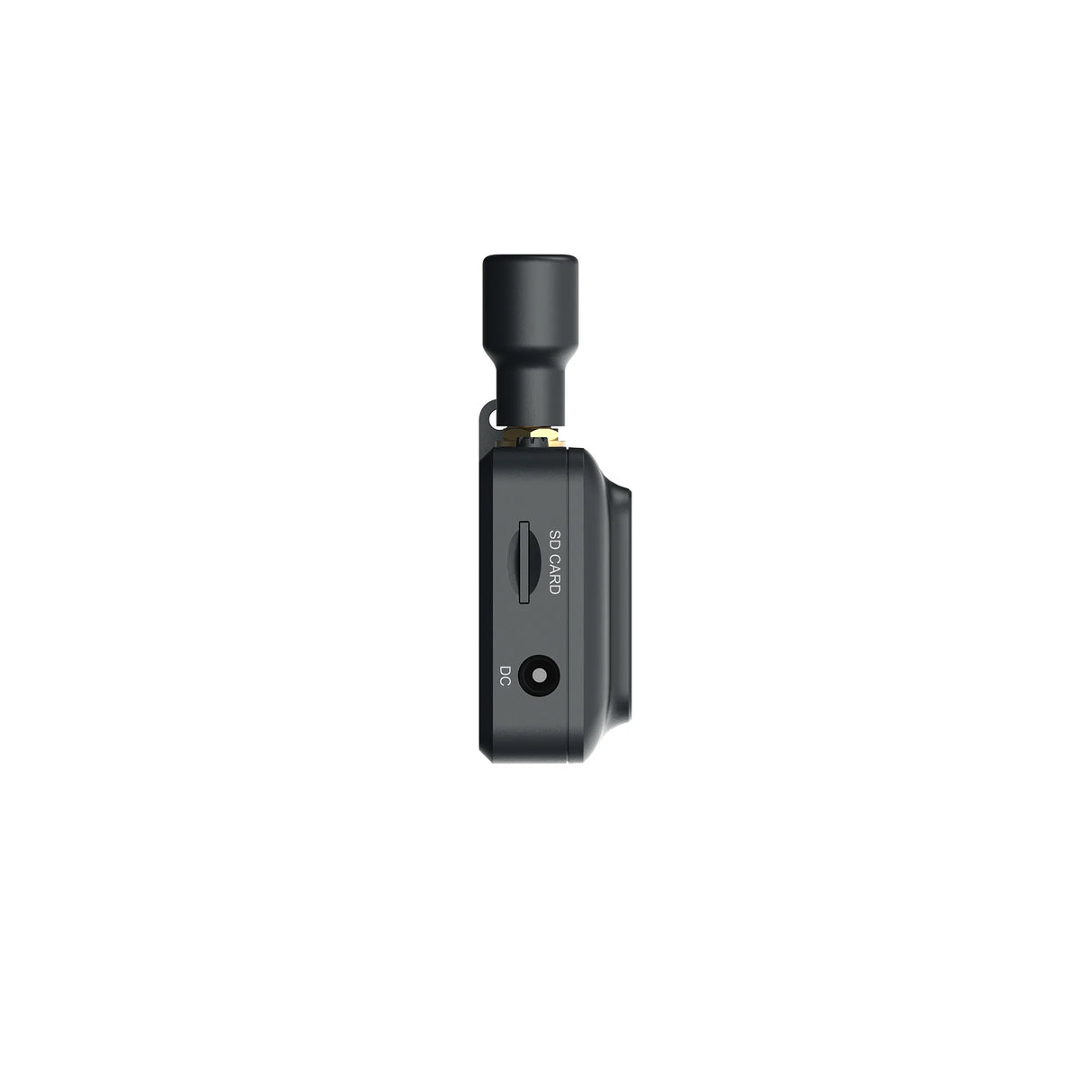

Walksnail VRX only 83g and comes with 114*55*22mm size, easy to carry.

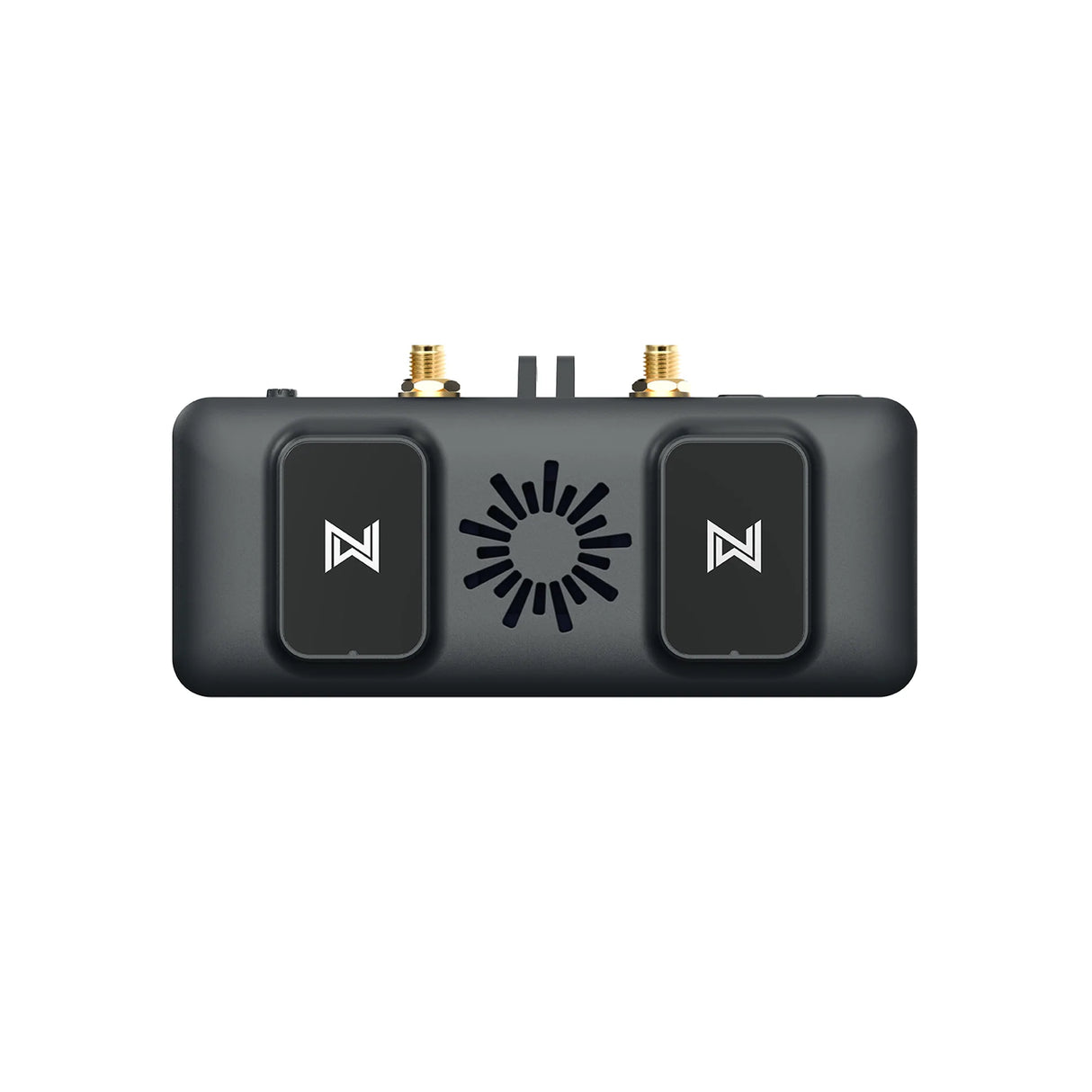

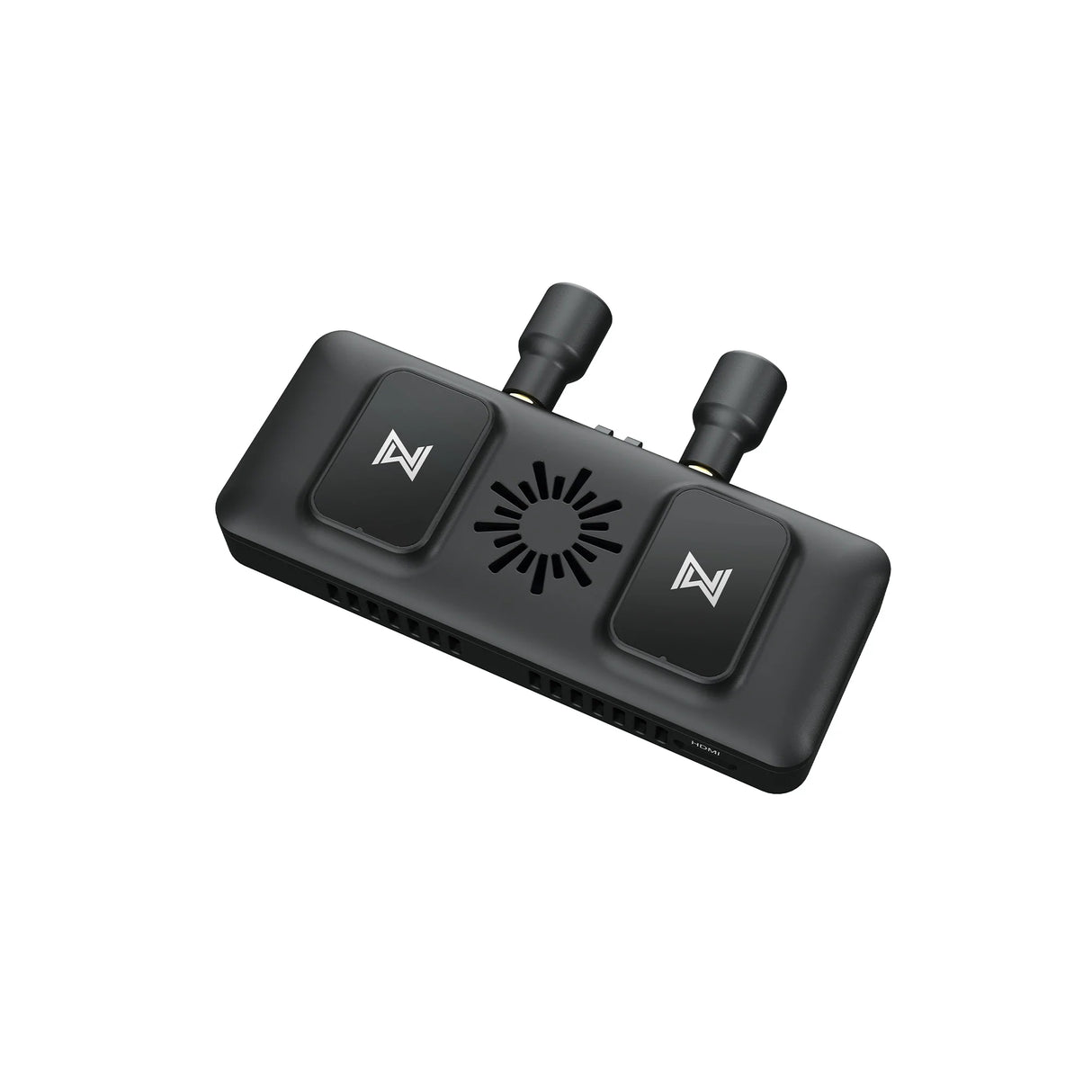

Walksnail VRX adopts 4 antenna design, 2 directional antennas, the maximum transmission distance is 4km
1080P/60FPS
Walksnail VRX adopts industry-leading H.265 encoding technology,
which can provide a minimum delay of 22ms and a maximum resolution of 1080p.
The HD picture quality takes you to experience the fun of flying a drone.

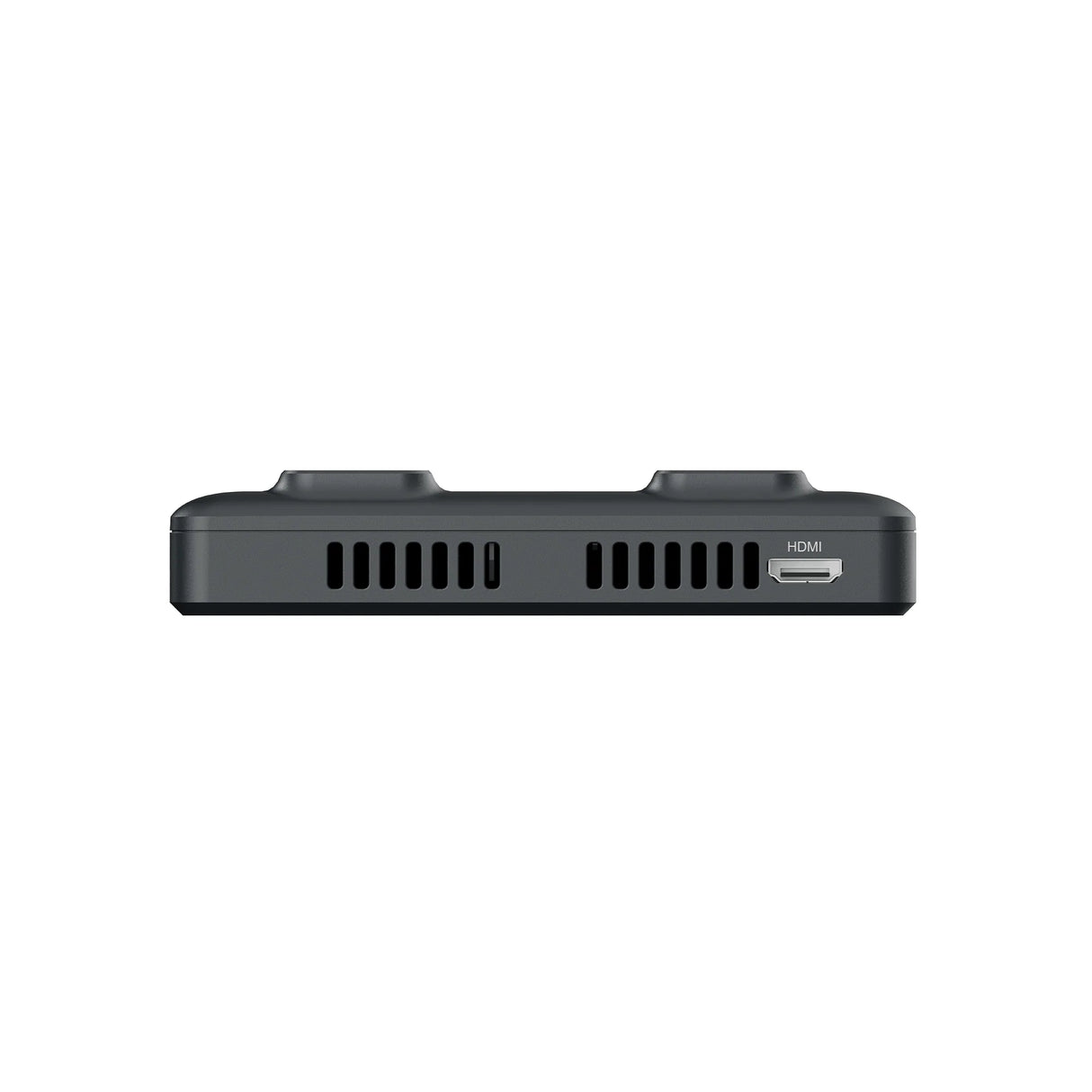

HDMI output ensure you to enjoy uncompressed audio and video signals from the Walksnail HD system
Canvas Mode
Supports betaflight full OSD display,supports betaflight, inav, kiss full osd display
you can easily adjust the parameters you want by remote control.
| Goggles Antenna | |
| Model | Red bird |
| Polarization | LHCP |
| Bandwidth | 5.6GHz-6.0GHZ |
| Average Gain | 1.9dBi |
| Radiation Efficiency | ≥97% |
| VSWR | ≤1.3 |
| Cross-Polar Rejection | -15to-30dB |
| Connector | RP-SMA |
| Dimension | H24.8mm*R15.3mm |
| Weight | 4.2g |
| Avatar HD VRX | |
| Model | Avatar HD VRX |
| CommunicationFrequency | 5.725-5.850GHz |
| TransmitterPower(EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm |
| I/OInterface | HDMI,microSDcardslot,DC5.5*2.1mm |
| HDMIOutput | 1080p60fps,720p100fps,720p60fps |
| PowerInput | 7-21V(2S-5S) |
| SDCard | Support256G |
| System | AvatarHDsystem |
| Packing List | |
| Avatar VRX | ×1 |
| RedBirdAntenna | ×2 |
| HDMICable | ×1 |
| 2in1DCPowerCable | ×1 |
