HappyModel 2.4GHz ES24TX Express LRS TX Module

Check this plug and play option out for LRS protocols! This Micro TX is designed by Happymodel and based on the open-source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing. Its main hardware architecture is ESP32, ESP8285, and SX1280 RF chip. The ES24TX module is a complete solution that is already pre-load the Expresslrs firmware and its plug and play.

Firmware Download

Specifications

• Regulatory Domain: ISM2400

• MCU: ESP32 and ESP8285

• RF chip: SX1280IMLTRT
• Frequency Range: 2400 MHz to 2500 MHz

• Maximum receive refresh rate: 500Hz

• Minimum receiver refresh rate: 25Hz

• RF Output Power: 10dBm~24dBm

• Power supply voltage: 5v~10v

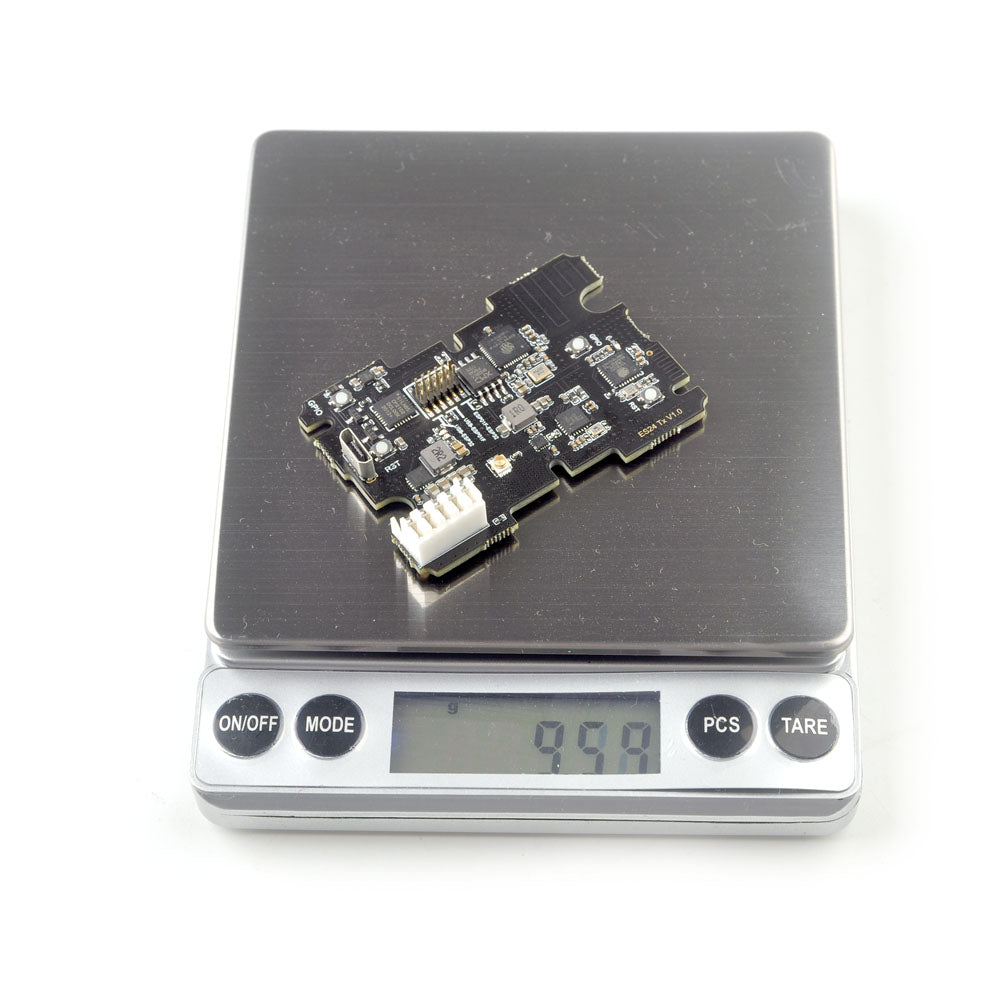

• Weight: 9.5gram(without antenna）

• Dimension: 55.5mm*39.5mm*8mm

• Antenna gain:1.87dBi

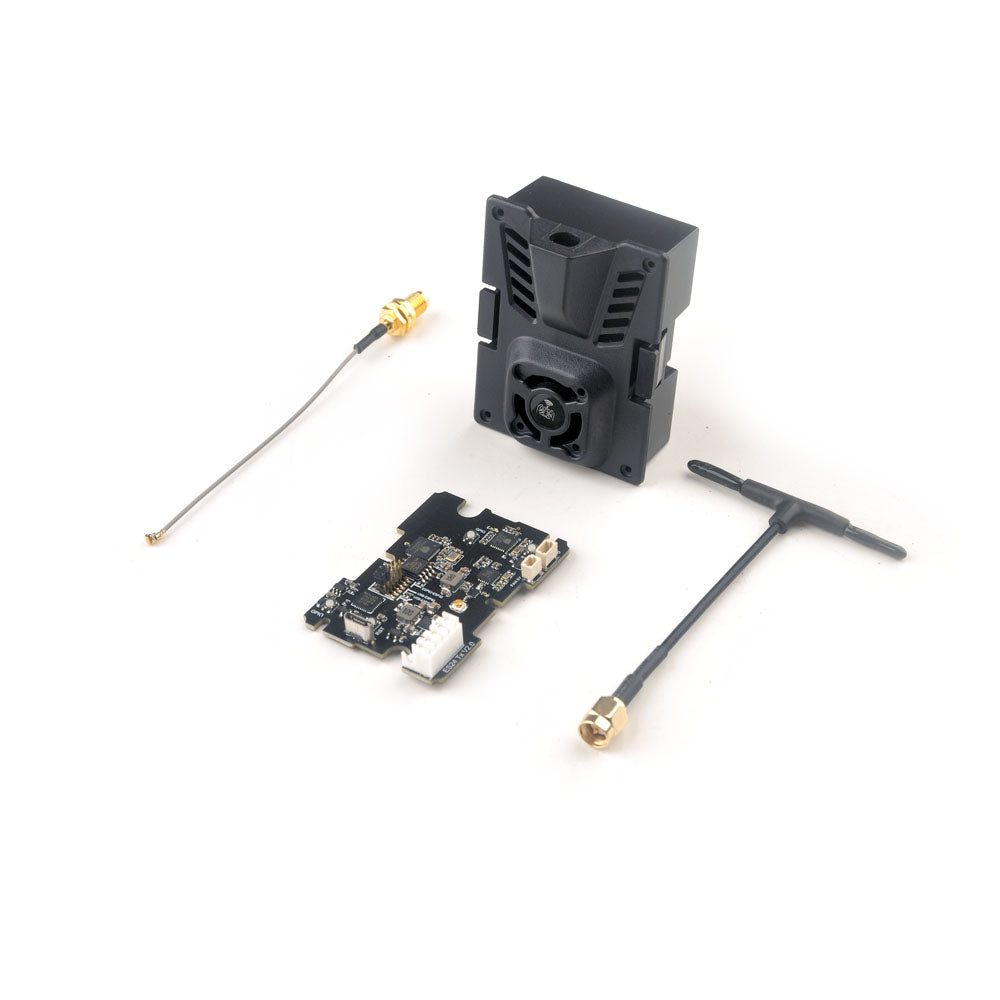

Includes

• 1x EX24TX Module
• 1x 24TX80 Antenna
• 1x JR Bay Protective Case
• 1x Antenna Adapter Cable
