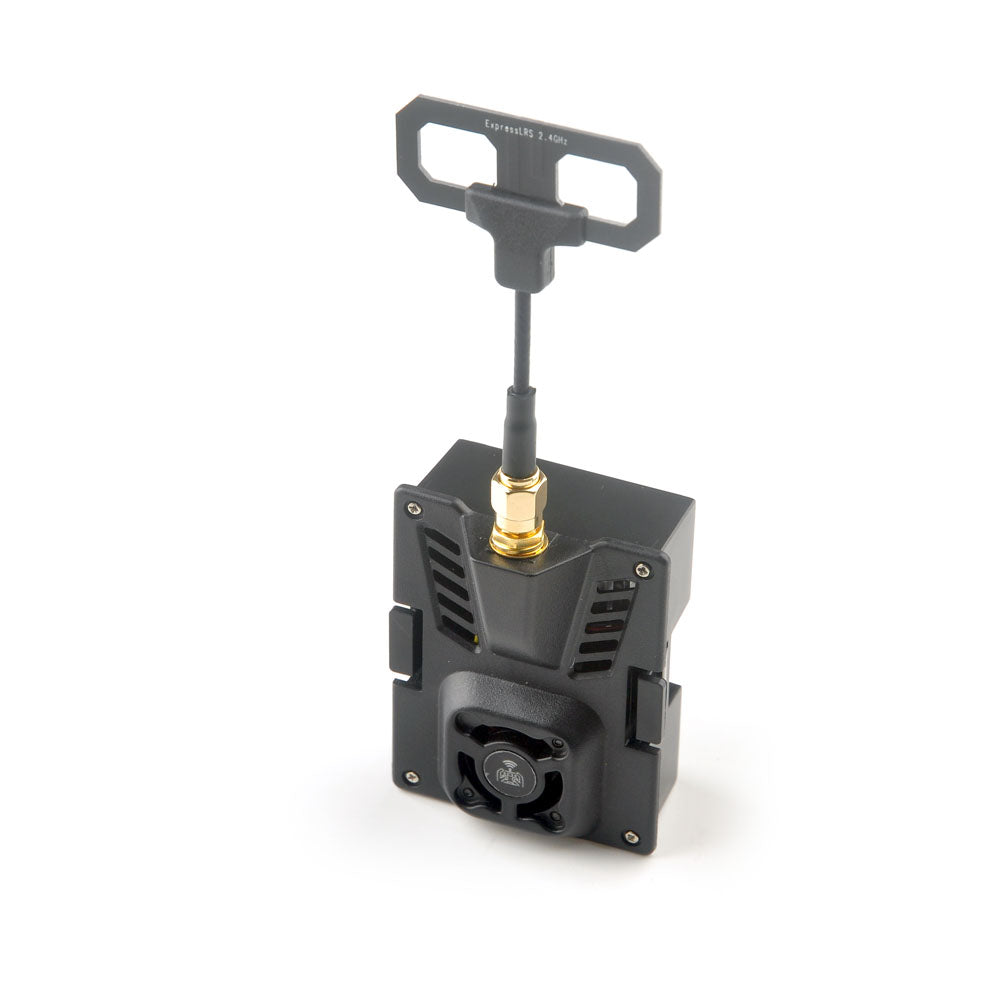

The ES24TX Pro Micro ExpressLRS TX module is an upgrade version of the ES24TX module.

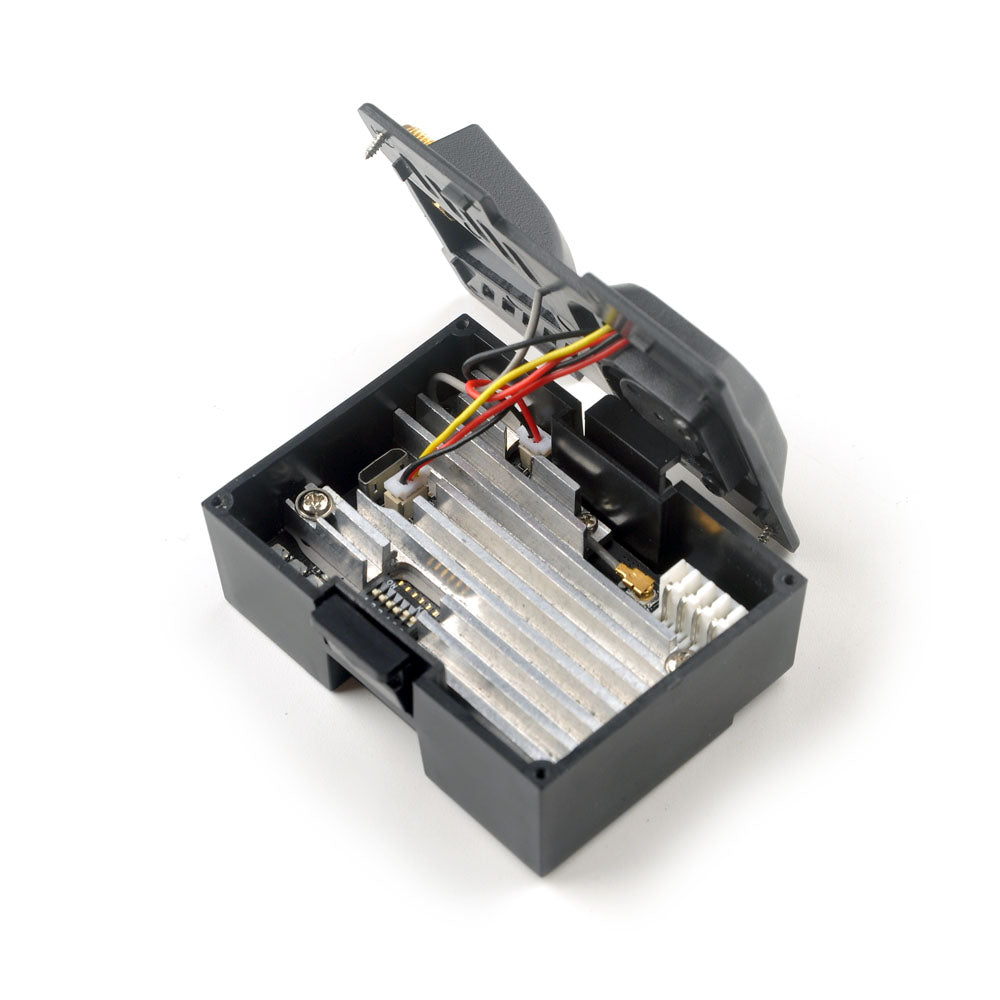

Max output up to 1000mw, reserved Cooling Fan, and RGB LED module. This Micro TX module supports most of the OpenTX radio transmitters with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of the factory. If you've considered making the switch to Express LRS, there's no better time than now!
Specifications
- Regulatory Domain: ISM2400
- MCU: ESP32(main),ESP8285(aux,as espbackpack)
- RF chip: SX1281IMLTRT
- JR standard 5pin socket
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz
- RF Output Power: >30dBm
- Power supply voltage: 5v~10v
- Weight: 51gram(without antenna）
- Dimension: 70mm*49mm*32.5mm
- Antenna gain: 4.18dBi
- Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX

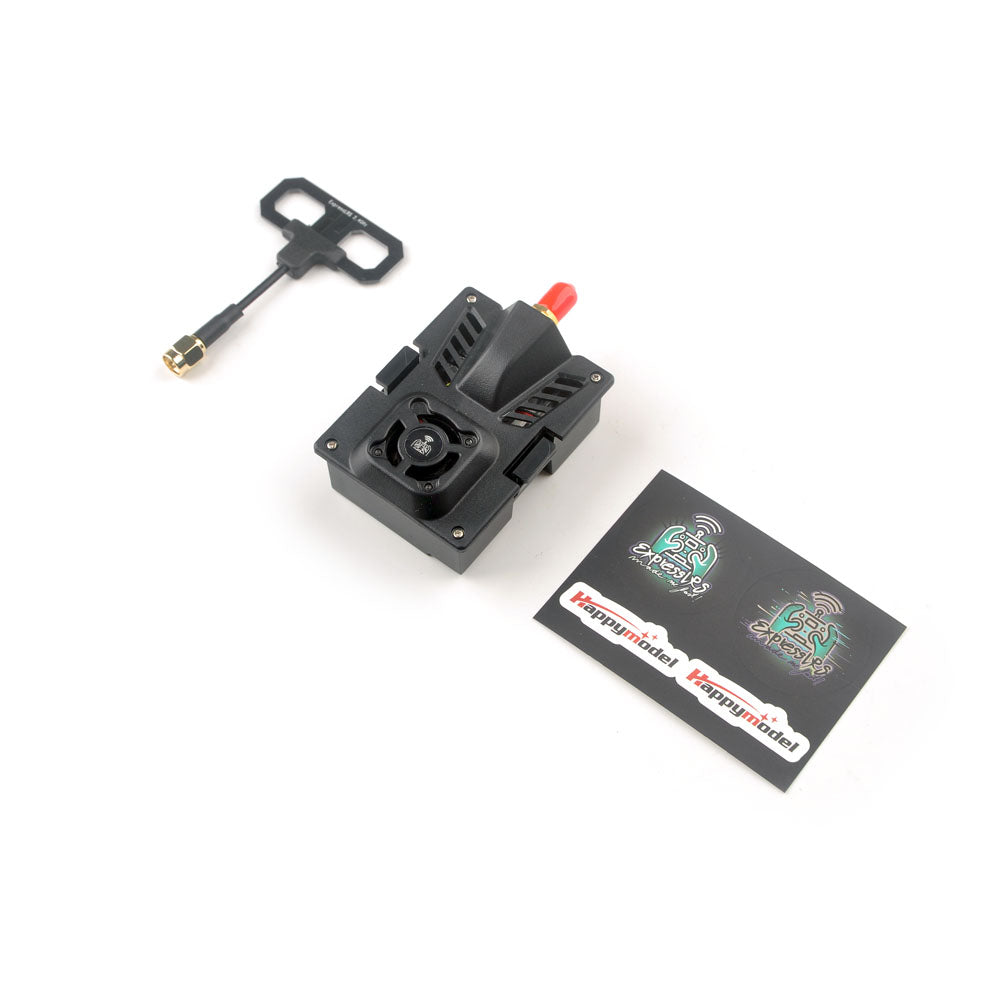

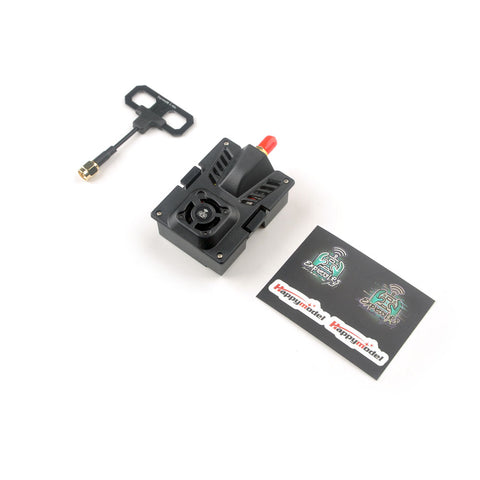

Includes
- 1x ES24TX Pro Micro TX module
- 1x Happymodel 2.4GHz Moxon antenna
If your looking for the Micro 2.4GHz ELRS click here
