Description

HDZero AIO5 is the world’s first digital video AIO, enabling bind and fly 65mm whoops to weigh less than 19.4g. AIO5 integrates a F4 flight controller, HDZero 5.8GHz digital video transmitter, SPI 2.4GHz ExpressLRS 3.0 receiver, DSHOT protocol 4-in-1 ESC, and a 5V/1A BEC.

The minimum voltage has been improved to be 2.3V, which ensures that video never stops transmitting before the motors stop working. Using a single thick PCB rather than a stack of 2 improves durability and simplicity – get ready for a new era of no-compromise tiny whooping in clear digital video!

The HDZero AIO5 is an excellent collaboration between Happymodel and HDZero. It is available at major FPV resellers worldwide, and also at Happymodel and HDZero official online shops.

Specifications

  • MCU: STM32F411 (100MHz, 512K Flash)

  • Gyro: BMI270

  • On board voltage and amperage meters

  • Built-in 5A(each) BLHeli_S 4-in-1 ESC

    • MCU: EFM8BB21

    • HV Current: 5A continuous peak 6A (3 seconds)

    • Factory firmware: O_H_5_48_V0.19.2.HEX

    • Dshot600 ready

  • Built-in 5.8G HDZero VTX

    • RF output: 25mw/200mW

    • Supported channels: R1-R8, F2/F4, L1-L8

    • UFL connector (ultra-lite linear antenna included)

  • Built-in SPI ExpressLRS 2.4GHz receiver

    • Packet rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

    • Pre-soldered enamel wire antenna

    • Telemetry output power: <12dBm

  • Built-in 5V 1A BEC

  • Flight controller firmware target: CRAZYBEEF4SX1280, configuration file??

  • Power supply: 1S battery (2.5V – 4.35V)

  • Fully compatible with the popular whoop frames

    • Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size

  • Weight: 5.7g(without motor plugs), 6.3g (with motor plugs)




Diagram

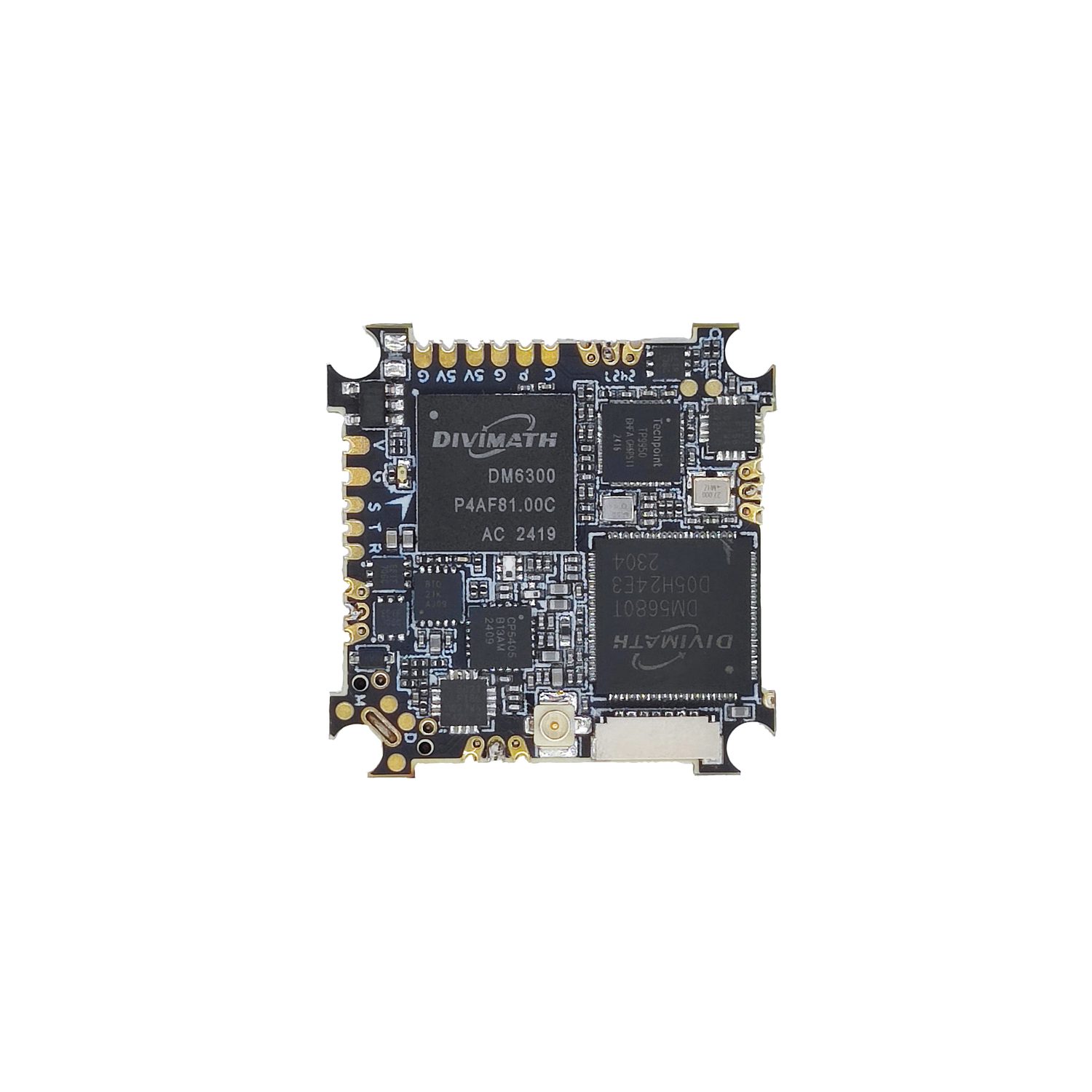

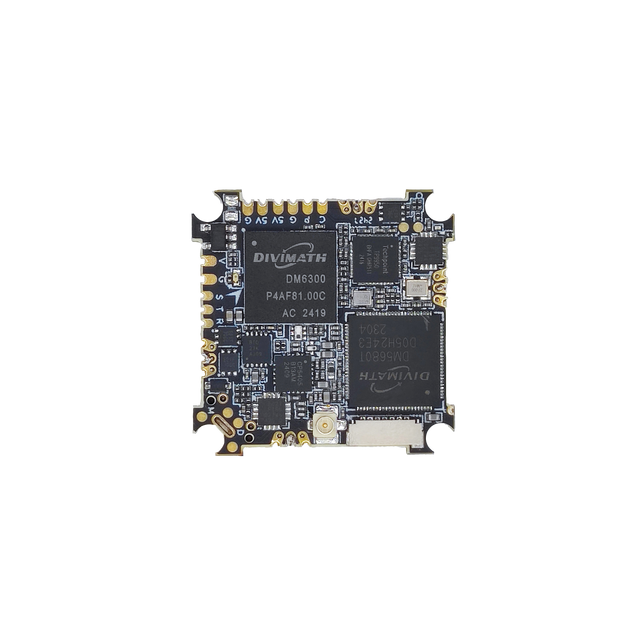

TOP

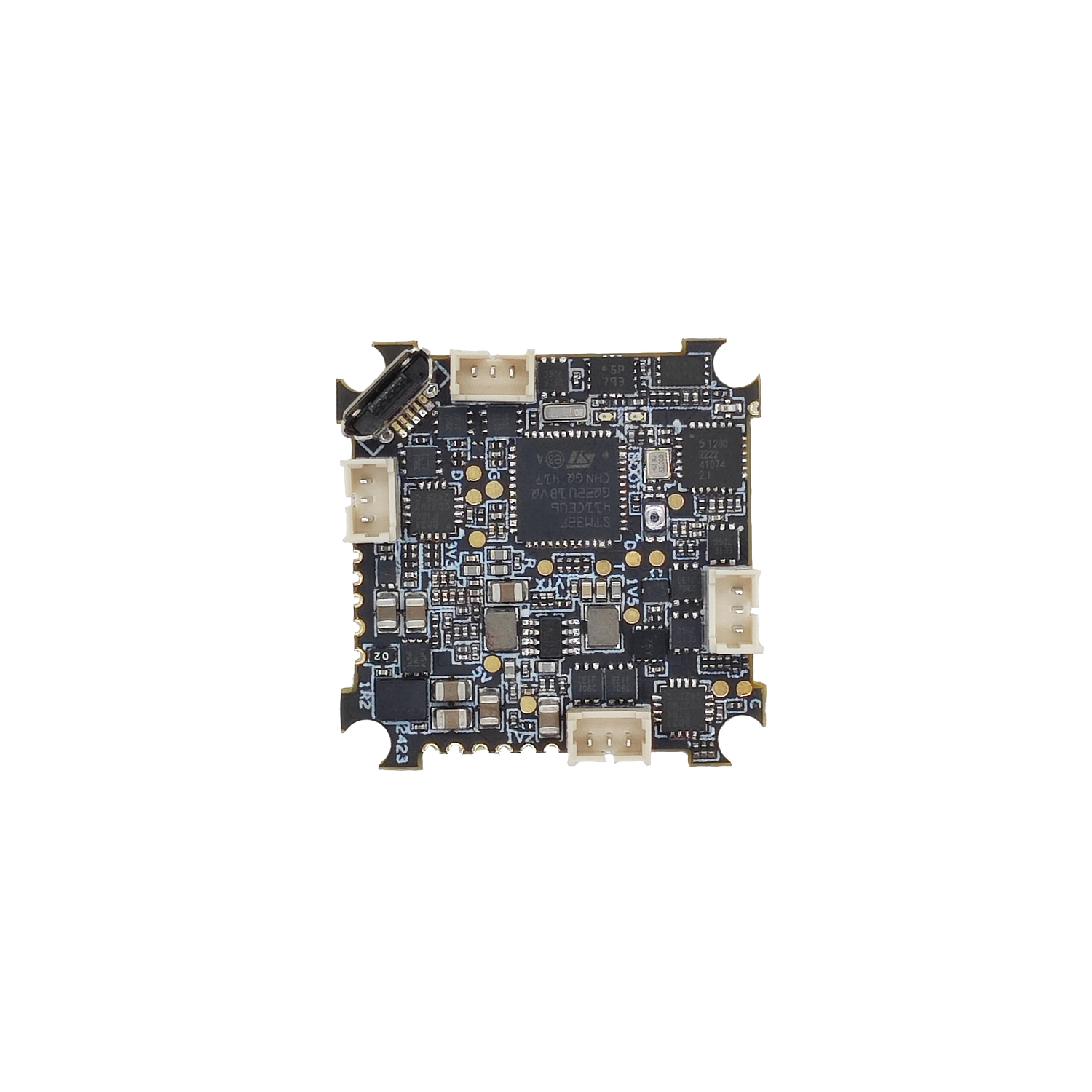

Bottom

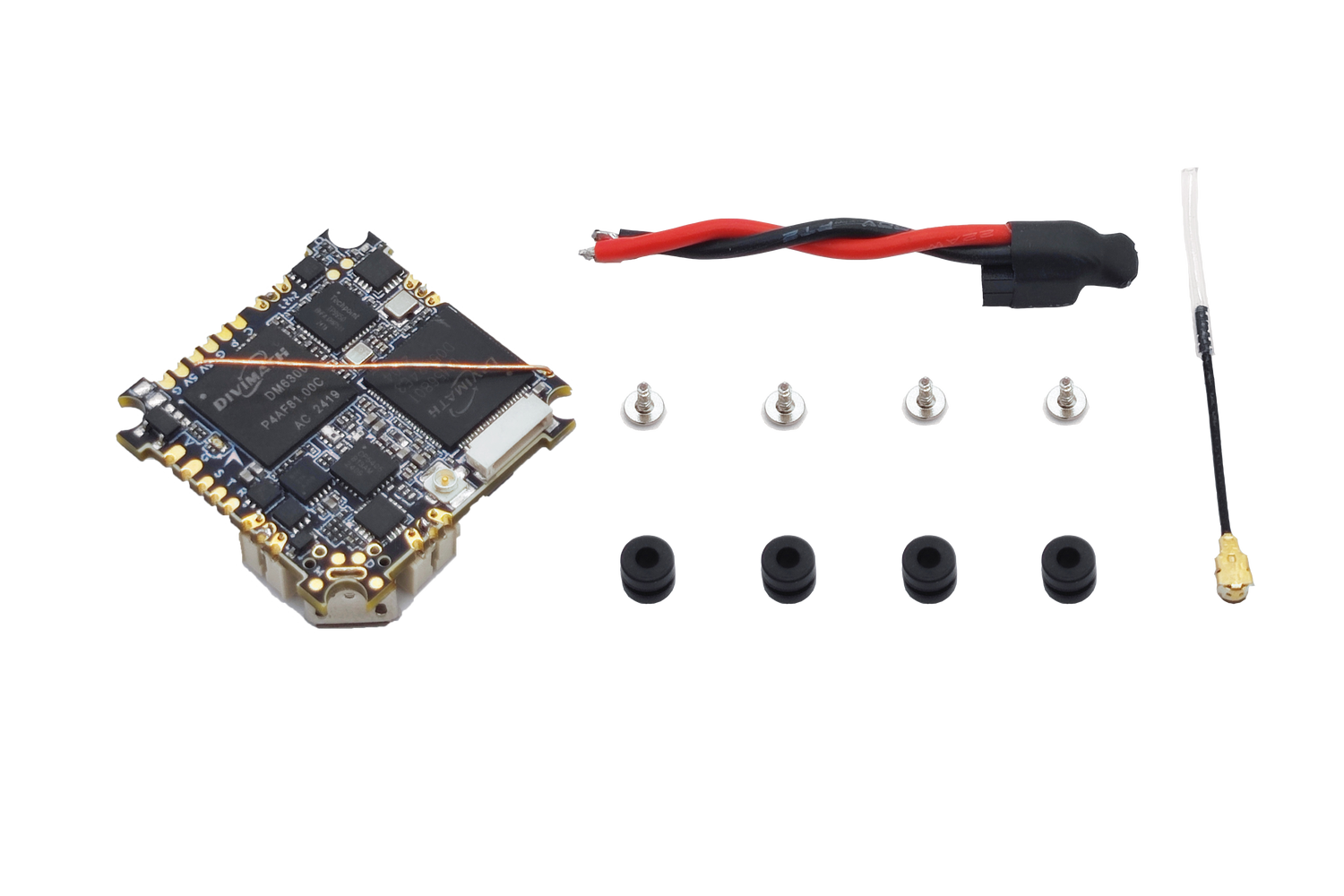

Included

  • 1x HDZero AIO5 board

  • 1x Power cable with inverted angle A30 connector

  • 4x screws

  • 4x rubber grommets

  • 1x ultra-lite linear VTX antenna




Installation

ELRS antenna

A line antenna (¼ wavelength) for the ELRS receiver is pre-soldered and positioned close to the board for low-profile and easy packaging. However, the ELRS antenna needs to be lifted to maintain at least 3 mm of clearance from the board.






VTX antenna

The HDZero VTX integrated into the AIO5 has a specific requirement to prevent video noise caused by the video RF signal being routed back to the onboard power amplifier.

The VTX antenna should be mounted outward, not inward, on the board.
